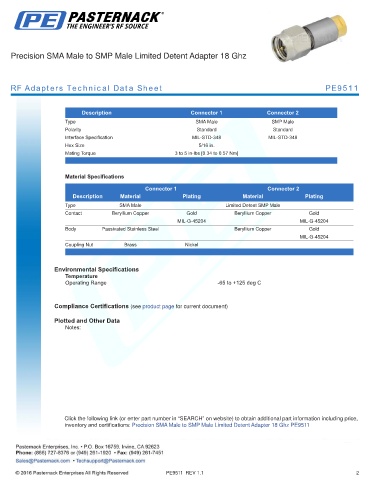

Precision SMA Male to SMP Male Limited Detent Adapter 18 Ghz

RF Adapters Technical Data Sheet PE9511

.
Description Connector 1 Connector 2
Type SMA Male SMP Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male Limited Detent SMP Male
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Body Passivated Stainless Steel Beryllium Copper Gold
MIL-G-45204
Coupling Nut Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Male to SMP Male Limited Detent Adapter 18 Ghz PE9511
