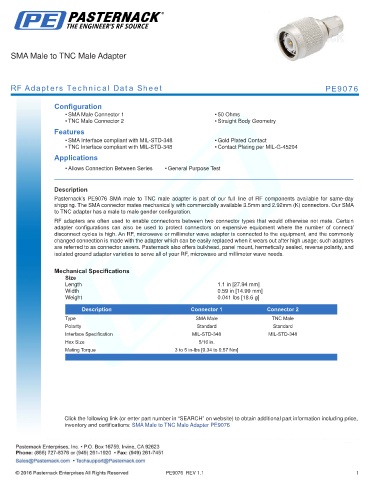

SMA Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9076

Configuration
• SMA Male Connector 1 • 50 Ohms
• TNC Male Connector 2 • Straight Body Geometry
Features
• SMA Interface compliant with MIL-STD-348 • Gold Plated Contact
• TNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9076 SMA male to TNC male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to TNC adapter has a male to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.1 in [27.94 mm]
Width 0.59 in [14.99 mm]
Weight 0.041 lbs [18.6 g]
.
Description Connector 1 Connector 2
Type SMA Male TNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to TNC Male Adapter PE9076

PE9076 REV 1.1 1
