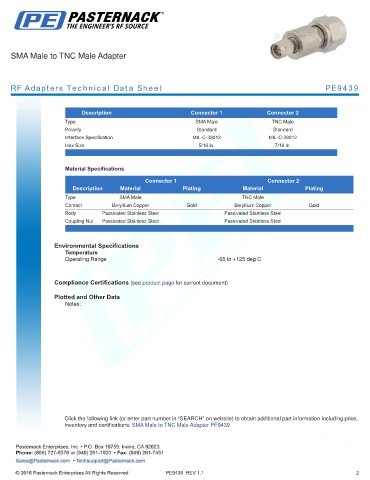

SMA Male to TNC Male Adapter

RF Adapters Technical Data Sheet PE9439

.
Description Connector 1 Connector 2
Type SMA Male TNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Hex Size 5/16 in. 7/16 in.
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male TNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Body Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to TNC Male Adapter PE9439

PE9439 REV 1.1 2
