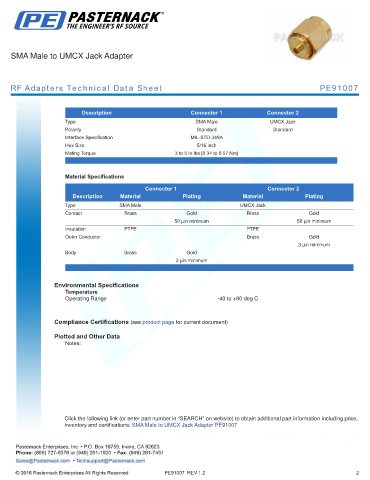

SMA Male to UMCX Jack Adapter

RF Adapters Technical Data Sheet PE91007

.
Description Connector 1 Connector 2
Type SMA Male UMCX Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A
Hex Size 5/16 inch
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male UMCX Jack
Contact Brass Gold Brass Gold
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold
3 µin minimum
Body Brass Gold
3 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +90 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to UMCX Jack Adapter PE91007
