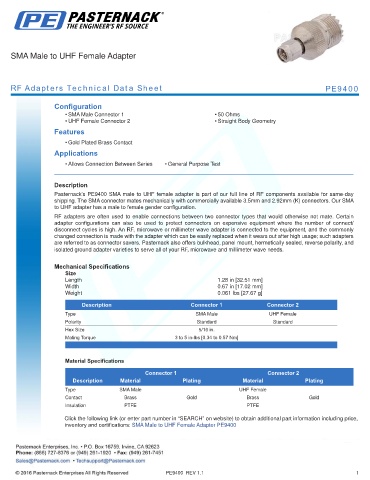

SMA Male to UHF Female Adapter

RF Adapters Technical Data Sheet PE9400

Configuration
• SMA Male Connector 1 • 50 Ohms
• UHF Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9400 SMA male to UHF female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to UHF adapter has a male to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.67 in [17.02 mm]
Weight 0.061 lbs [27.67 g]
.
Description Connector 1 Connector 2
Type SMA Male UHF Female
Polarity Standard Standard
Hex Size 5/16 in.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Male UHF Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to UHF Female Adapter PE9400
