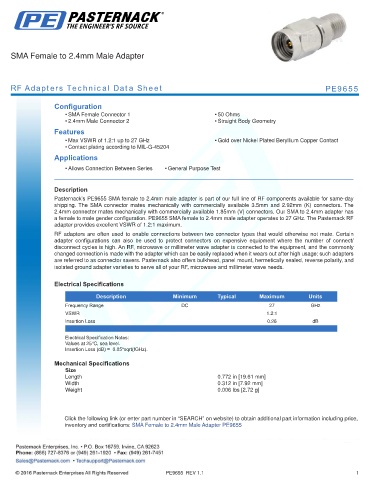

SMA Female to 2.4mm Male Adapter

RF Adapters Technical Data Sheet PE9655

Configuration
• SMA Female Connector 1 • 50 Ohms
• 2.4mm Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.2:1 up to 27 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9655 SMA female to 2.4mm male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. The
2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our SMA to 2.4mm adapter has
a female to male gender configuration. PE9655 SMA female to 2.4mm male adapter operates to 27 GHz. The Pasternack RF
adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.2:1
Insertion Loss 0.26 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.772 in [19.61 mm]
Width 0.312 in [7.92 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to 2.4mm Male Adapter PE9655

PE9655 REV 1.1 1
