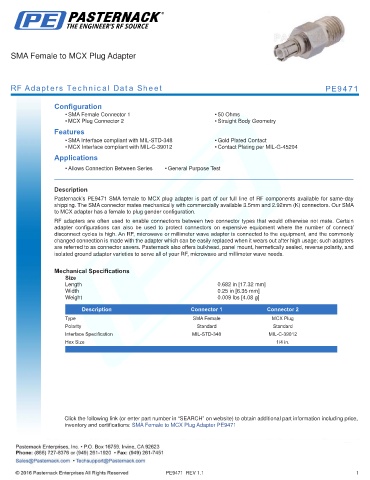

SMA Female to MCX Plug Adapter

RF Adapters Technical Data Sheet PE9471

Configuration
• SMA Female Connector 1 • 50 Ohms
• MCX Plug Connector 2 • Straight Body Geometry
Features
• SMA Interface compliant with MIL-STD-348 • Gold Plated Contact
• MCX Interface compliant with MIL-C-39012 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9471 SMA female to MCX plug adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to MCX adapter has a female to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.682 in [17.32 mm]
Width 0.25 in [6.35 mm]
Weight 0.009 lbs [4.08 g]
.
Description Connector 1 Connector 2
Type SMA Female MCX Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-C-39012
Hex Size 1/4 in.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to MCX Plug Adapter PE9471

PE9471 REV 1.1 1
