SMA Female to MCX Jack Adapter

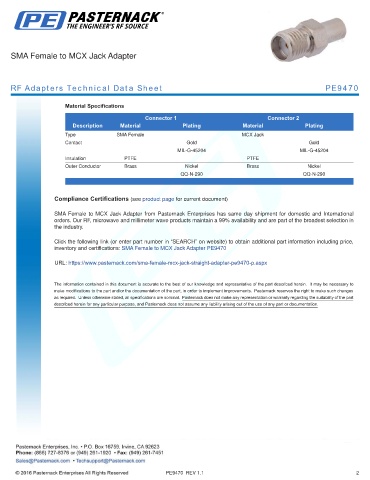

RF Adapters Technical Data Sheet PE9470

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female MCX Jack
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Compliance Certifications (see product page for current document)

SMA Female to MCX Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to MCX Jack Adapter PE9470

URL: https://www.pasternack.com/sma-female-mcx-jack-straight-adapter-pe9470-p.aspx

PE9470 REV 1.1 2
