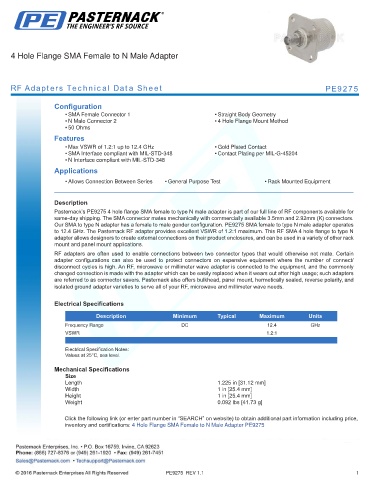

4 Hole Flange SMA Female to N Male Adapter

RF Adapters Technical Data Sheet PE9275

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• N Male Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.2:1 up to 12.4 GHz • Gold Plated Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• N Interface compliant with MIL-STD-348
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9275 4 hole flange SMA female to type N male adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to type N adapter has a female to male gender configuration. PE9275 SMA female to type N male adapter operates
to 12.4 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum. This RF SMA 4 hole flange to type N
adapter allows designers to create external connections on their product enclosures, and can be used in a variety of other rack
mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.225 in [31.12 mm]
Width 1 in [25.4 mm]
Height 1 in [25.4 mm]
Weight 0.092 lbs [41.73 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange SMA Female to N Male Adapter PE9275
