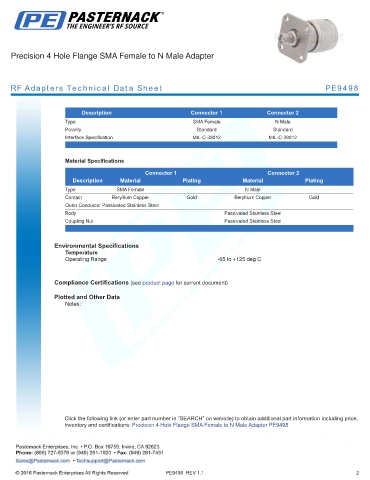

Precision 4 Hole Flange SMA Female to N Male Adapter

RF Adapters Technical Data Sheet PE9498

.
Description Connector 1 Connector 2
Type SMA Female N Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female N Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 4 Hole Flange SMA Female to N Male Adapter PE9498

PE9498 REV 1.1 2
