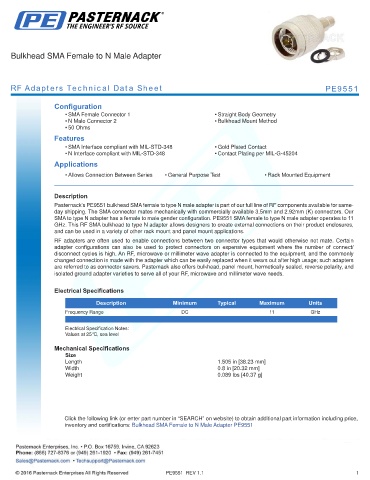

Bulkhead SMA Female to N Male Adapter

RF Adapters Technical Data Sheet PE9551

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• N Male Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• SMA Interface compliant with MIL-STD-348 • Gold Plated Contact
• N Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9551 bulkhead SMA female to type N male adapter is part of our full line of RF components available for same-
day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our
SMA to type N adapter has a female to male gender configuration. PE9551 SMA female to type N male adapter operates to 11
GHz. This RF SMA bulkhead to type N adapter allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.505 in [38.23 mm]
Width 0.8 in [20.32 mm]
Weight 0.089 lbs [40.37 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMA Female to N Male Adapter PE9551

PE9551 REV 1.1 1
