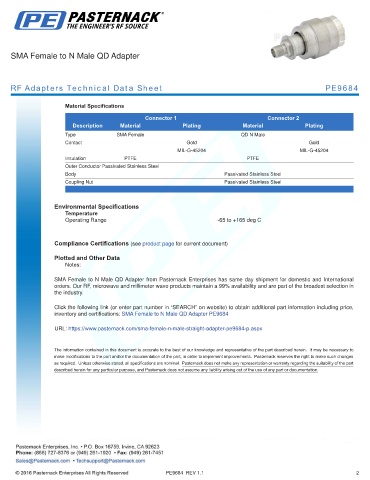

SMA Female to N Male QD Adapter

RF Adapters Technical Data Sheet PE9684

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female QD N Male
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

SMA Female to N Male QD Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to N Male QD Adapter PE9684

URL: https://www.pasternack.com/sma-female-n-male-straight-adapter-pe9684-p.aspx

PE9684 REV 1.1 2
