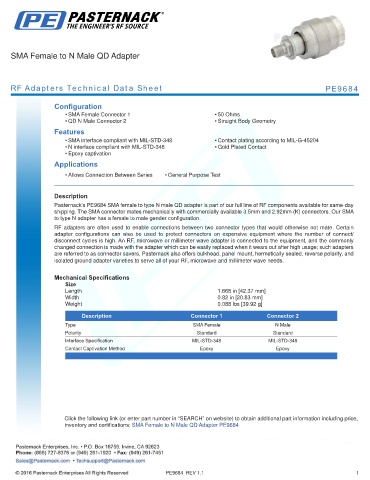

SMA Female to N Male QD Adapter

RF Adapters Technical Data Sheet PE9684

Configuration
• SMA Female Connector 1 • 50 Ohms
• QD N Male Connector 2 • Straight Body Geometry
Features
• SMA interface compliant with MIL-STD-348 • Contact plating according to MIL-G-45204
• N interface compliant with MIL-STD-348 • Gold Plated Contact
• Epoxy captivation
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9684 SMA female to type N male QD adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to type N adapter has a female to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.668 in [42.37 mm]
Width 0.82 in [20.83 mm]
Weight 0.088 lbs [39.92 g]
.
Description Connector 1 Connector 2
Type SMA Female N Male
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Contact Captivation Method Epoxy Epoxy
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to N Male QD Adapter PE9684

PE9684 REV 1.1 1
