SMA Female to SMC Jack Adapter
RF Adapters Technical Data Sheet PE9147

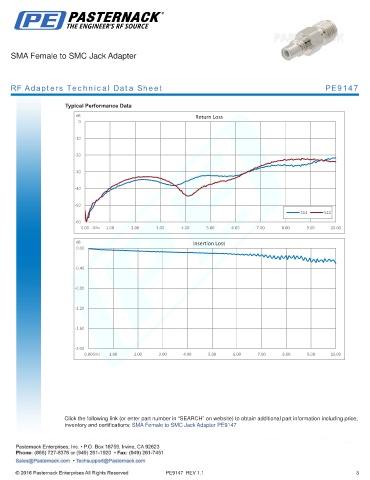

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0.00 GHz 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0.00GHz 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMC Jack Adapter PE9147
