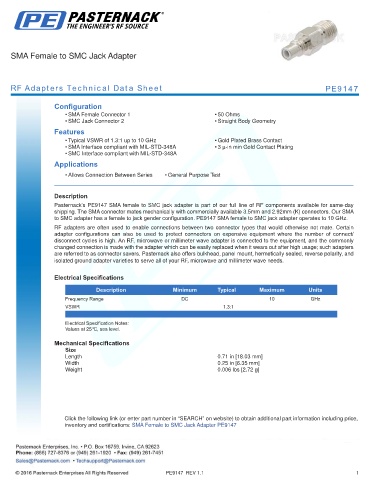

SMA Female to SMC Jack Adapter

RF Adapters Technical Data Sheet PE9147

Configuration
• SMA Female Connector 1 • 50 Ohms
• SMC Jack Connector 2 • Straight Body Geometry
Features
• Typical VSWR of 1.3:1 up to 10 GHz • Gold Plated Brass Contact
• SMA Interface compliant with MIL-STD-348A • 3 µ-in min Gold Contact Plating
• SMC Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9147 SMA female to SMC jack adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SMC adapter has a female to jack gender configuration. PE9147 SMA female to SMC jack adapter operates to 10 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.71 in [18.03 mm]
Width 0.25 in [6.35 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMC Jack Adapter PE9147

PE9147 REV 1.1 1
