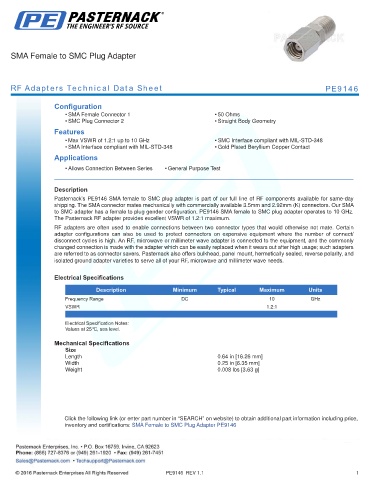

SMA Female to SMC Plug Adapter

RF Adapters Technical Data Sheet PE9146

Configuration
• SMA Female Connector 1 • 50 Ohms
• SMC Plug Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.2:1 up to 10 GHz • SMC Interface compliant with MIL-STD-348
• SMA Interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9146 SMA female to SMC plug adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SMC adapter has a female to plug gender configuration. PE9146 SMA female to SMC plug adapter operates to 10 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.64 in [16.26 mm]
Width 0.25 in [6.35 mm]
Weight 0.008 lbs [3.63 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMC Plug Adapter PE9146

PE9146 REV 1.1 1
