SMA Female to SMB Jack Adapter

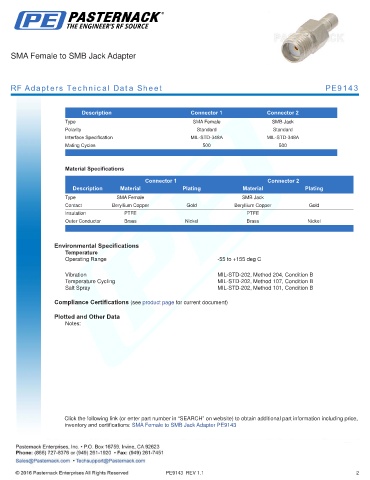

RF Adapters Technical Data Sheet PE9143

.
Description Connector 1 Connector 2
Type SMA Female SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMB Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycling MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMB Jack Adapter PE9143

PE9143 REV 1.1 2
