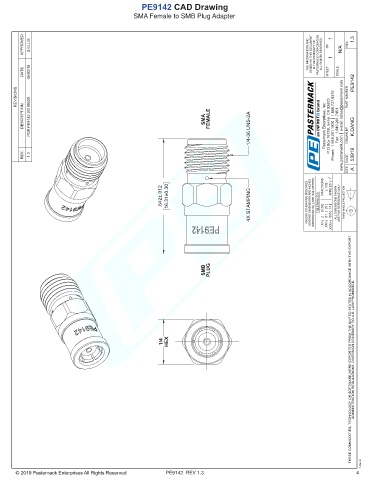

PE9142 CAD Drawing
SMA Female to SMB Plug Adapter

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV 1.3

DATE 06/03/19 SHEET OF SCALE PE9142

REVISIONS PART NUMBER

DESCRIPTION PCR PE9142 20190529 SMA FEMALE 1/4-36 UNS-2A Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. 1.3 CAGE 53919

FRACTIONS ± 1/32 ANGLES ± 1° SIZE A
.642±.012 16.31±0.30 UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

4X STAMPING .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

SMB PLUG

1/4 HEX THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE9142 REV 1.3 4
