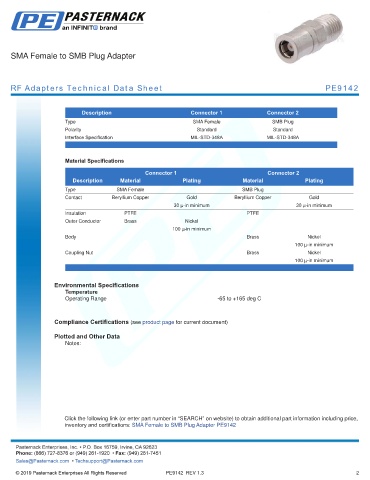

SMA Female to SMB Plug Adapter

RF Adapters Technical Data Sheet PE9142

.
Description Connector 1 Connector 2
Type SMA Female SMB Plug
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SMB Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SMB Plug Adapter PE9142
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9142 REV 1.3 2
