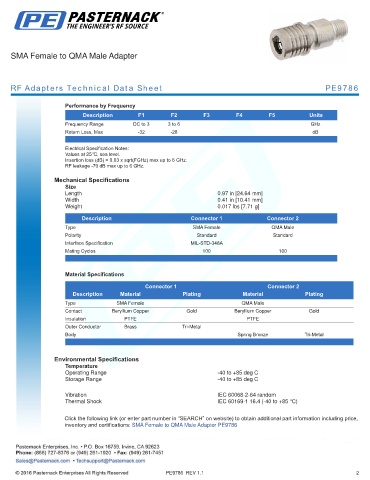

SMA Female to QMA Male Adapter

RF Adapters Technical Data Sheet PE9786

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 6 GHz
Return Loss, Max -32 -28 dB
.
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion loss (dB) = 0.03 x sqrt(FGHz) max up to 6 GHz.
RF leakage -70 dB max up to 6 GHz.
Mechanical Specifications
Size
Length 0.97 in [24.64 mm]
Width 0.41 in [10.41 mm]
Weight 0.017 lbs [7.71 g]
.
Description Connector 1 Connector 2
Type SMA Female QMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348A
Mating Cycles 100 100
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female QMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
Body Spring Bronze Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -40 to +85 deg C
.
Vibration IEC 60068-2-64 random
Thermal Shock IEC 60169-1 16.4 (-40 to +85 °C)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to QMA Male Adapter PE9786

PE9786 REV 1.1 2
