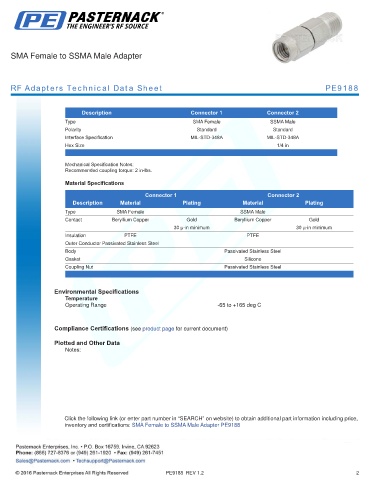

SMA Female to SSMA Male Adapter
RF Adapters Technical Data Sheet PE9188
.
Description Connector 1 Connector 2
Type SMA Female SSMA Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Hex Size 1/4 in
.
Mechanical Specification Notes:
Recommended coupling torque: 2 in-lbs.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SSMA Male
Contact Beryllium Copper Gold Beryllium Copper Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Gasket Silicone
Coupling Nut Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SSMA Male Adapter PE9188
