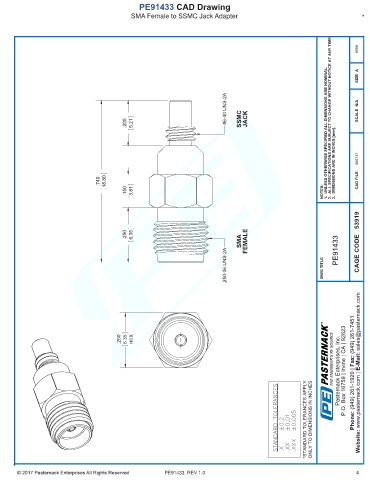

PE91433 CAD Drawing
SMA Female to SSMC Jack Adapter

9999

SIZE A

#6-40 UNS-2A SCALE N/A

SSMC 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
.205 5.21 JACK
3. DIMENSIONS ARE IN INCHES [mm]. 080717
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.740 18.80 CAD FILE

.150 3.81 NOTES:

.250 6.35
SMA FEMALE PE91433 CAGE CODE 53919
.250-36 UNS-2A DWG TITLE

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.250 6.35 HEX

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE91433 REV 1.0 4
