SMA Female to TNC Male Adapter

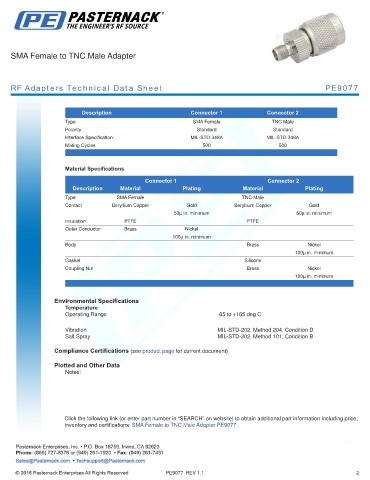

RF Adapters Technical Data Sheet PE9077

.
Description Connector 1 Connector 2
Type SMA Female TNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
50µ in. minimum 50µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel
100µ in. minimum
Gasket Silicone
Coupling Nut Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202. Method 204, Condition D
Salt Spray MIL-STD-202. Method 101, Condition B

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Male Adapter PE9077
