SMA Female to TNC Male Adapter

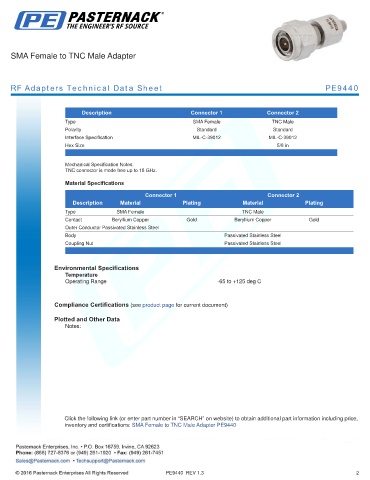

RF Adapters Technical Data Sheet PE9440

.
Description Connector 1 Connector 2
Type SMA Female TNC Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Hex Size 5/8 in
.
Mechanical Specification Notes:
TNC connector is mode free up to 18 GHz.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Male
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Male Adapter PE9440
