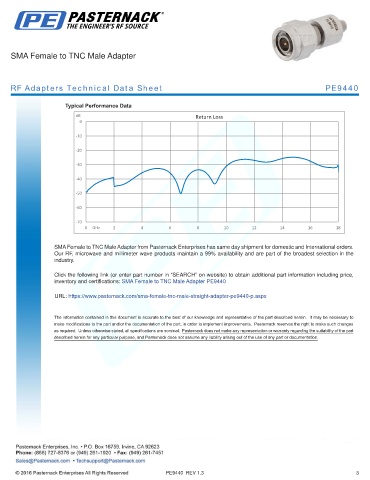

SMA Female to TNC Male Adapter

RF Adapters Technical Data Sheet PE9440

Typical Performance Data
dB Return Loss
0

-10

-20

-30

-40

-50

-60

-70
0 GHz 2 4 6 8 10 12 14 16 18

SMA Female to TNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Male Adapter PE9440

URL: https://www.pasternack.com/sma-female-tnc-male-straight-adapter-pe9440-p.aspx

PE9440 REV 1.3 3
