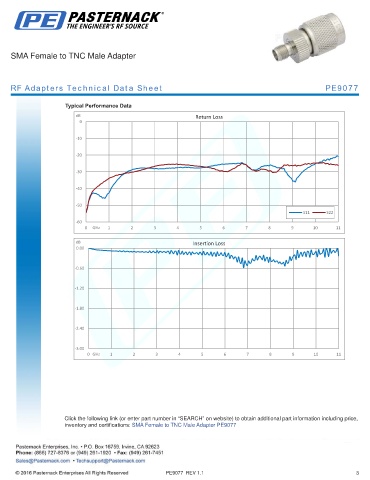

SMA Female to TNC Male Adapter
RF Adapters Technical Data Sheet PE9077
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0 GHz 1 2 3 4 5 6 7 8 9 10 11
dB Insertion Loss
0.00
-0.60
-1.20
-1.80
-2.40
-3.00
0 GHz 1 2 3 4 5 6 7 8 9 10 11
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Male Adapter PE9077
PE9077 REV 1.1 3
