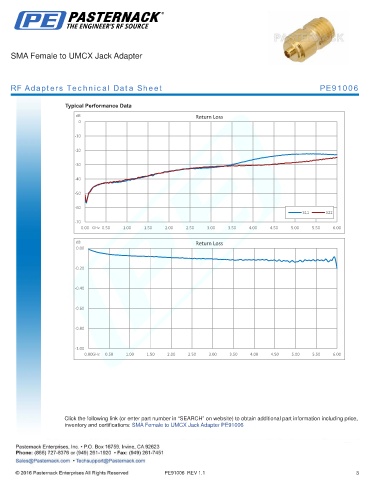

SMA Female to UMCX Jack Adapter
RF Adapters Technical Data Sheet PE91006
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50 6.00
dB Return Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50 6.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to UMCX Jack Adapter PE91006
