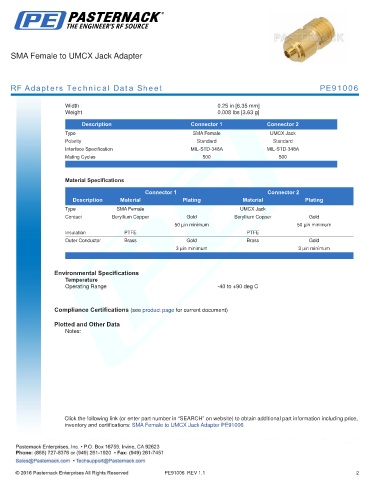

SMA Female to UMCX Jack Adapter
RF Adapters Technical Data Sheet PE91006
Width 0.25 in [6.35 mm]
Weight 0.008 lbs [3.63 g]
.
Description Connector 1 Connector 2
Type SMA Female UMCX Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female UMCX Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold Brass Gold
3 µin minimum 3 µin minimum
. .
Environmental Specifications
Temperature
Operating Range -40 to +90 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to UMCX Jack Adapter PE91006
