SMA Male to Reverse Polarity MCX Plug Adapter

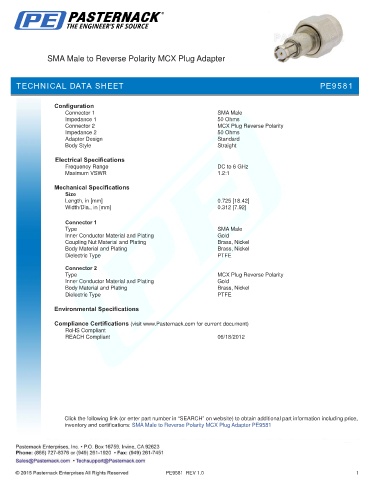

TECHNICAL DATA SHEET PE9581

Configuration
Connector 1 SMA Male
Impedance 1 50 Ohms
Connector 2 MCX Plug Reverse Polarity
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.2:1

Mechanical Specifications
Size
Length, in [mm] 0.725 [18.42]
Width/Dia., in [mm] 0.312 [7.92]
.
Connector 1
Type SMA Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 2
Type MCX Plug Reverse Polarity
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Environmental Specifications

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to Reverse Polarity MCX Plug Adapter PE9581

PE9581 REV 1.0 1
