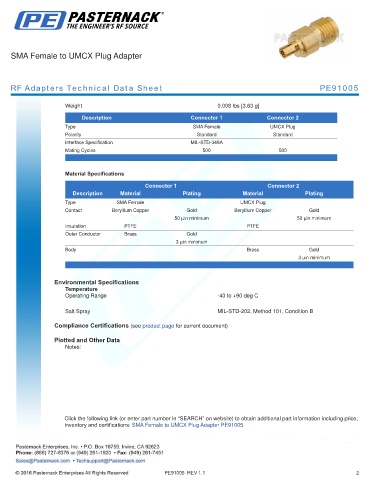

SMA Female to UMCX Plug Adapter
RF Adapters Technical Data Sheet PE91005
Weight 0.008 lbs [3.63 g]
.
Description Connector 1 Connector 2
Type SMA Female UMCX Plug
Polarity Standard Standard
Interface Specification MIL-STD-348A
Mating Cycles 500 500
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female UMCX Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
50 µin minimum 50 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold
3 µin minimum
Body Brass Gold
3 µin minimum
. .
Environmental Specifications
Temperature
Operating Range -40 to +90 deg C
.
Salt Spray MIL-STD-202, Method 101, Condition B
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to UMCX Plug Adapter PE91005
PE91005 REV 1.1 2
