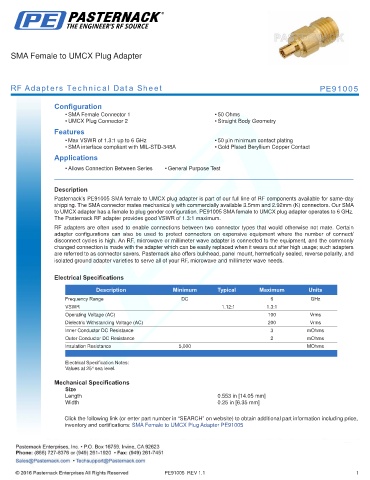

SMA Female to UMCX Plug Adapter

RF Adapters Technical Data Sheet PE91005

Configuration
• SMA Female Connector 1 • 50 Ohms
• UMCX Plug Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 6 GHz • 50 µin minimum contact plating
• SMA interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91005 SMA female to UMCX plug adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to UMCX adapter has a female to plug gender configuration. PE91005 SMA female to UMCX plug adapter operates to 6 GHz.
The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.12:1 1.3:1
Operating Voltage (AC) 100 Vrms
Dielectric Withstanding Voltage (AC) 200 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25° sea level.

Mechanical Specifications
Size
Length 0.553 in [14.05 mm]
Width 0.25 in [6.35 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to UMCX Plug Adapter PE91005

PE91005 REV 1.1 1
