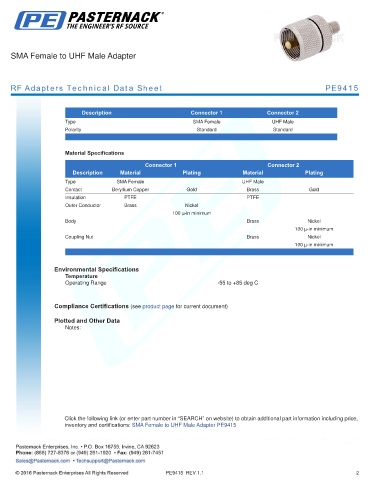

SMA Female to UHF Male Adapter

RF Adapters Technical Data Sheet PE9415

.
Description Connector 1 Connector 2
Type SMA Female UHF Male
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female UHF Male
Contact Beryllium Copper Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to UHF Male Adapter PE9415

PE9415 REV 1.1 2
