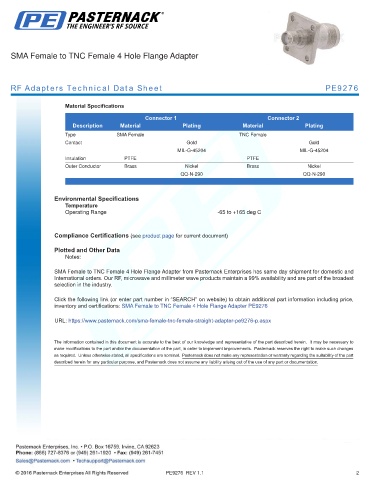

SMA Female to TNC Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9276

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SMA Female to TNC Female 4 Hole Flange Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female 4 Hole Flange Adapter PE9276

URL: https://www.pasternack.com/sma-female-tnc-female-straight-adapter-pe9276-p.aspx

PE9276 REV 1.1 2
