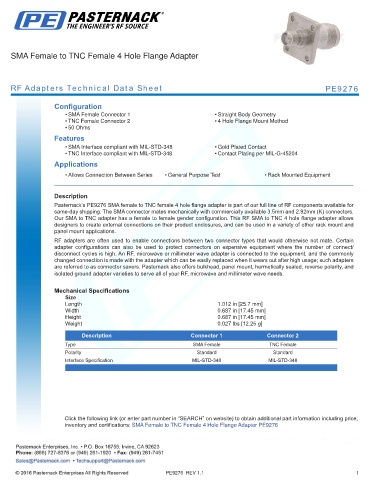

SMA Female to TNC Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9276

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• TNC Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• SMA Interface compliant with MIL-STD-348 • Gold Plated Contact
• TNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9276 SMA female to TNC female 4 hole flange adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to TNC adapter has a female to female gender configuration. This RF SMA to TNC 4 hole flange adapter allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.012 in [25.7 mm]
Width 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type SMA Female TNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female 4 Hole Flange Adapter PE9276

PE9276 REV 1.1 1
