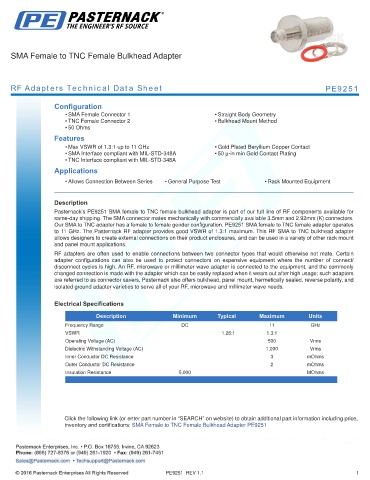

SMA Female to TNC Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9251

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• TNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.3:1 up to 11 GHz • Gold Plated Beryllium Copper Contact
• SMA Interface compliant with MIL-STD-348A • 50 µ-in min Gold Contact Plating
• TNC Interface compliant with MIL-STD-348A
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9251 SMA female to TNC female bulkhead adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to TNC adapter has a female to female gender configuration. PE9251 SMA female to TNC female adapter operates
to 11 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF SMA to TNC bulkhead adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.26:1 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female Bulkhead Adapter PE9251
