SMA Female to TNC Female Adapter

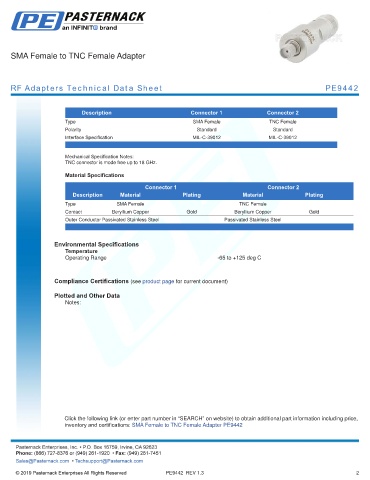

RF Adapters Technical Data Sheet PE9442

.
Description Connector 1 Connector 2
Type SMA Female TNC Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Mechanical Specification Notes:
TNC connector is mode free up to 18 GHz.
Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female Adapter PE9442
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9442 REV 1.3 2
