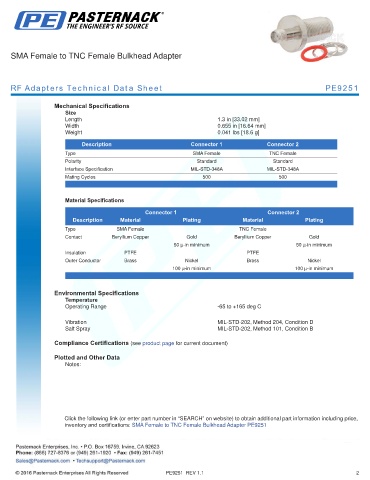

SMA Female to TNC Female Bulkhead Adapter

RF Adapters Technical Data Sheet PE9251

Mechanical Specifications
Size
Length 1.3 in [33.02 mm]
Width 0.655 in [16.64 mm]
Weight 0.041 lbs [18.6 g]
.
Description Connector 1 Connector 2
Type SMA Female TNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female TNC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
50 µ-in minimum 50 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female Bulkhead Adapter PE9251

PE9251 REV 1.1 2
