SMA Female to TNC Female Adapter

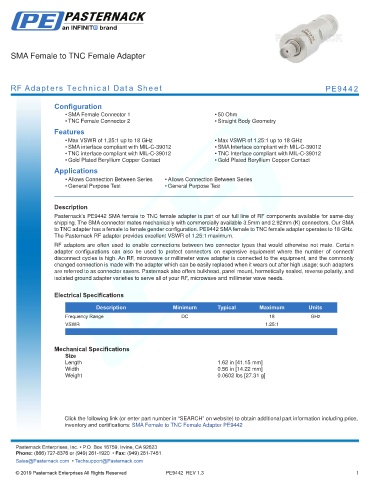

RF Adapters Technical Data Sheet PE9442

Configuration
• SMA Female Connector 1 • 50 Ohm
• TNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 18 GHz • Max VSWR of 1.25:1 up to 18 GHz
• SMA interface compliant with MIL-C-39012 • SMA Interface compliant with MIL-C-39012
• TNC interface compliant with MIL-C-39012 • TNC Interface compliant with MIL-C-39012
• Gold Plated Beryllium Copper Contact • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9442 SMA female to TNC female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to TNC adapter has a female to female gender configuration. PE9442 SMA female to TNC female adapter operates to 18 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
. .

Mechanical Specifications
Size
Length 1.62 in [41.15 mm]
Width 0.56 in [14.22 mm]
Weight 0.0602 lbs [27.31 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to TNC Female Adapter PE9442
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9442 REV 1.3 1
