SMB Tee Adapter Plug-Plug-Plug

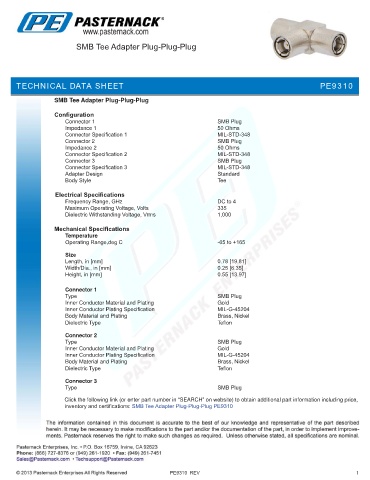

TECHNICAL DATA SHEET PE9310

SMB Tee Adapter Plug-Plug-Plug

Configuration
Connector 1 SMB Plug
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMB Plug
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348
Connector 3 SMB Plug
Connector Specification 3 MIL-STD-348
Adapter Design Standard
Body Style Tee

Electrical Specifications
Frequency Range, GHz DC to 4
Maximum Operating Voltage, Volts 335
Dielectric Withstanding Voltage, Vrms 1,000
Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165

Size
Length, in [mm] 0.78 [19.81]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.55 [13.97]
.
Connector 1
Type SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 3
Type SMB Plug

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Plug-Plug-Plug PE9310

PE9310 REV 1
