SMB Plug to SMB Jack Adapter

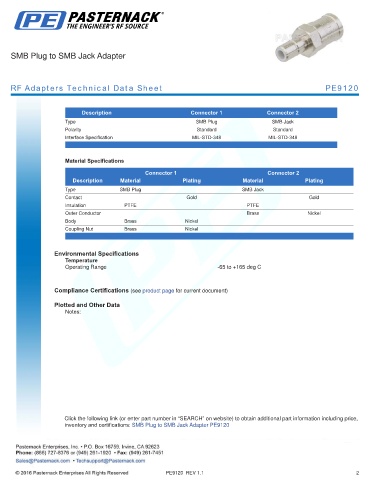

RF Adapters Technical Data Sheet PE9120

.
Description Connector 1 Connector 2
Type SMB Plug SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Plug SMB Jack
Contact Gold Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
Coupling Nut Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to SMB Jack Adapter PE9120

PE9120 REV 1.1 2
