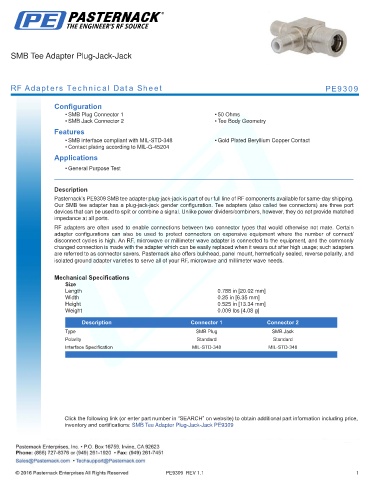

SMB Tee Adapter Plug-Jack-Jack

RF Adapters Technical Data Sheet PE9309

Configuration
• SMB Plug Connector 1 • 50 Ohms
• SMB Jack Connector 2 • Tee Body Geometry
Features
• SMB interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE9309 SMB tee adapter plug-jack-jack is part of our full line of RF components available for same-day shipping.
Our SMB tee adapter has a plug-jack-jack gender configuration. Tee adapters (also called tee connectors) are three port
devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide matched
impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.788 in [20.02 mm]
Width 0.25 in [6.35 mm]
Height 0.525 in [13.34 mm]
Weight 0.009 lbs [4.08 g]
.
Description Connector 1 Connector 2
Type SMB Plug SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Plug-Jack-Jack PE9309

PE9309 REV 1.1 1
