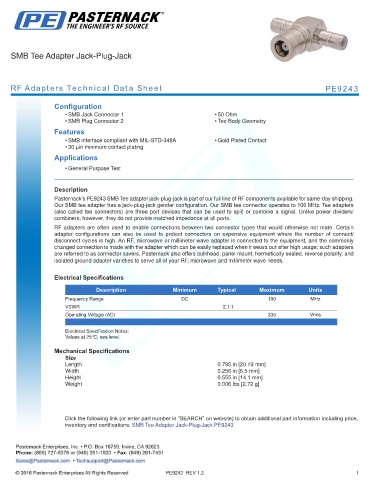

SMB Tee Adapter Jack-Plug-Jack

RF Adapters Technical Data Sheet PE9243

Configuration
• SMB Jack Connector 1 • 50 Ohm
• SMB Plug Connector 2 • Tee Body Geometry
Features
• SMB interface compliant with MIL-STD-348A • Gold Plated Contact
• 30 µin minimum contact plating
Applications
• General Purpose Test
.
Description
Pasternack’s PE9243 SMB Tee adapter jack-plug-jack is part of our full line of RF components available for same-day shipping.
Our SMB tee adapter has a jack-plug-jack gender configuration. Our SMB tee connector operates to 100 MHz. Tee adapters
(also called tee connectors) are three port devices that can be used to split or combine a signal. Unlike power dividers/
combiners, however, they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 100 MHz
VSWR 2.1:1
Operating Voltage (AC) 335 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.795 in [20.19 mm]
Width 0.256 in [6.5 mm]
Height 0.555 in [14.1 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Jack-Plug-Jack PE9243

PE9243 REV 1.2 1
