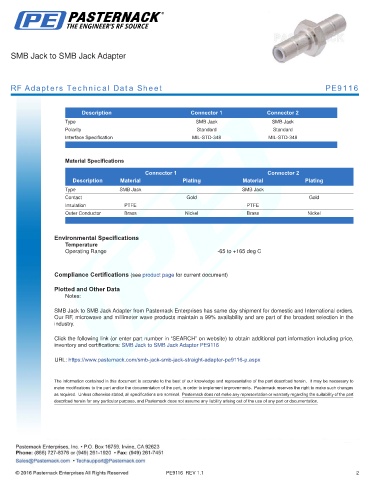

SMB Jack to SMB Jack Adapter

RF Adapters Technical Data Sheet PE9116

.
Description Connector 1 Connector 2
Type SMB Jack SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Jack SMB Jack
Contact Gold Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

SMB Jack to SMB Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Jack to SMB Jack Adapter PE9116

URL: https://www.pasternack.com/smb-jack-smb-jack-straight-adapter-pe9116-p.aspx

PE9116 REV 1.1 2
