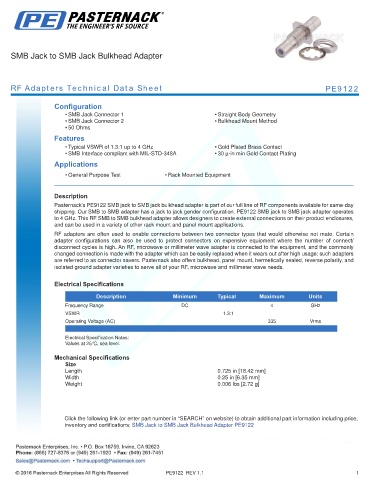

SMB Jack to SMB Jack Bulkhead Adapter

RF Adapters Technical Data Sheet PE9122

Configuration
• SMB Jack Connector 1 • Straight Body Geometry
• SMB Jack Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Typical VSWR of 1.3:1 up to 4 GHz • Gold Plated Brass Contact
• SMB Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9122 SMB jack to SMB jack bulkhead adapter is part of our full line of RF components available for same-day
shipping. Our SMB to SMB adapter has a jack to jack gender configuration. PE9122 SMB jack to SMB jack adapter operates
to 4 GHz. This RF SMB to SMB bulkhead adapter allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.725 in [18.42 mm]
Width 0.25 in [6.35 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Jack to SMB Jack Bulkhead Adapter PE9122

PE9122 REV 1.1 1
