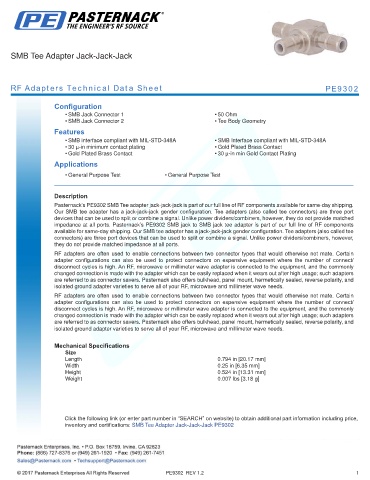

SMB Tee Adapter Jack-Jack-Jack

RF Adapters Technical Data Sheet PE9302

Configuration
• SMB Jack Connector 1 • 50 Ohm
• SMB Jack Connector 2 • Tee Body Geometry
Features
• SMB interface compliant with MIL-STD-348A • SMB Interface compliant with MIL-STD-348A
• 30 µ-in minimum contact plating • Gold Plated Brass Contact
• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test • General Purpose Test

.
Description
Pasternack’s PE9302 SMB Tee adapter jack-jack-jack is part of our full line of RF components available for same-day shipping.
Our SMB tee adapter has a jack-jack-jack gender configuration. Tee adapters (also called tee connectors) are three port
devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not provide matched
impedance at all ports. Pasternack’s PE9302 SMB jack to SMB jack tee adapter is part of our full line of RF components
available for same-day shipping. Our SMB tee adapter has a jack-jack-jack gender configuration. Tee adapters (also called tee
connectors) are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however,
they do not provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.794 in [20.17 mm]
Width 0.25 in [6.35 mm]
Height 0.524 in [13.31 mm]
Weight 0.007 lbs [3.18 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Jack-Jack-Jack PE9302

PE9302 REV 1.2 1
