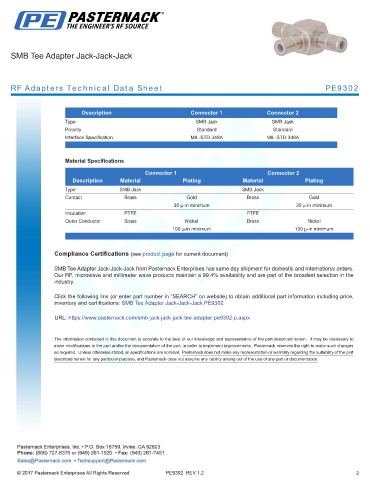

Page 2744 - RF Adapter Datasheets

SMB Tee Adapter Jack-Jack-Jack

RF Adapters Technical Data Sheet PE9302

.
Description Connector 1 Connector 2
Type SMB Jack SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Jack SMB Jack
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Compliance Certifications (see product page for current document)

SMB Tee Adapter Jack-Jack-Jack from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Tee Adapter Jack-Jack-Jack PE9302

URL: https://www.pasternack.com/smb-jack-jack-jack-tee-adapter-pe9302-p.aspx

PE9302 REV 1.2 2
