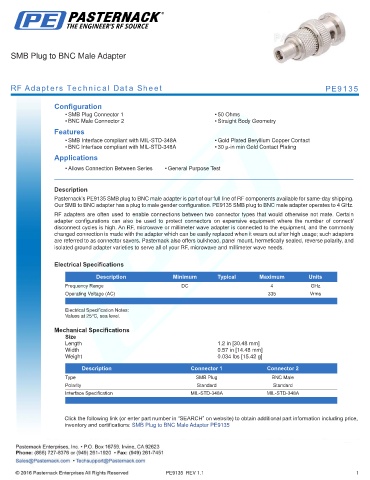

SMB Plug to BNC Male Adapter

RF Adapters Technical Data Sheet PE9135

Configuration
• SMB Plug Connector 1 • 50 Ohms
• BNC Male Connector 2 • Straight Body Geometry
Features
• SMB Interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
• BNC Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9135 SMB plug to BNC male adapter is part of our full line of RF components available for same-day shipping.
Our SMB to BNC adapter has a plug to male gender configuration. PE9135 SMB plug to BNC male adapter operates to 4 GHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 335 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.2 in [30.48 mm]
Width 0.57 in [14.48 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type SMB Plug BNC Male
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to BNC Male Adapter PE9135

PE9135 REV 1.1 1
