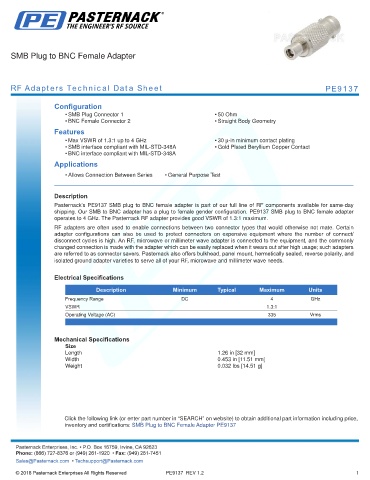

SMB Plug to BNC Female Adapter

RF Adapters Technical Data Sheet PE9137

Configuration
• SMB Plug Connector 1 • 50 Ohm
• BNC Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 4 GHz • 30 µ-in minimum contact plating
• SMB interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
• BNC interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9137 SMB plug to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our SMB to BNC adapter has a plug to female gender configuration. PE9137 SMB plug to BNC female adapter
operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
. .

Mechanical Specifications
Size
Length 1.26 in [32 mm]
Width 0.453 in [11.51 mm]
Weight 0.032 lbs [14.51 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to BNC Female Adapter PE9137
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9137 REV 1.2 1
