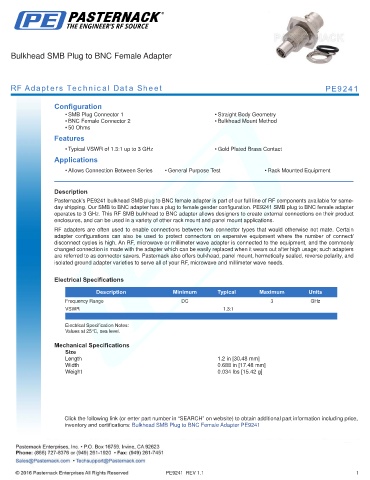

Bulkhead SMB Plug to BNC Female Adapter

RF Adapters Technical Data Sheet PE9241

Configuration
• SMB Plug Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Typical VSWR of 1.3:1 up to 3 GHz • Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9241 bulkhead SMB plug to BNC female adapter is part of our full line of RF components available for same-
day shipping. Our SMB to BNC adapter has a plug to female gender configuration. PE9241 SMB plug to BNC female adapter
operates to 3 GHz. This RF SMB bulkhead to BNC adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.2 in [30.48 mm]
Width 0.688 in [17.48 mm]
Weight 0.034 lbs [15.42 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMB Plug to BNC Female Adapter PE9241

PE9241 REV 1.1 1
