Bulkhead SMB Plug to BNC Female Adapter

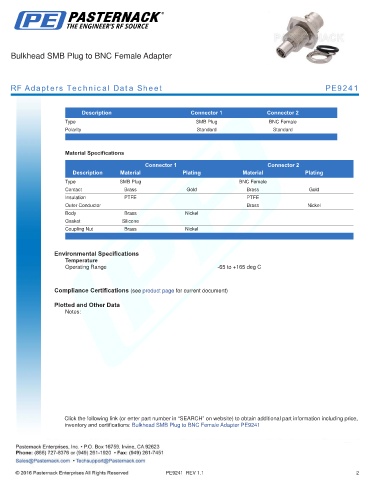

RF Adapters Technical Data Sheet PE9241

.
Description Connector 1 Connector 2
Type SMB Plug BNC Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMB Plug BNC Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
Gasket Silicone
Coupling Nut Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMB Plug to BNC Female Adapter PE9241

PE9241 REV 1.1 2
